What’s “No Network Adapters” Issue?
No network Adapter issue actually will be happened during installation, if the server has no adapter or the adapter driver is not loaded or the image is not contains of any compatible adapter driver, ESXi installer does stop installation and prompt:
It might be happened even after installation cause of upgrade firmware to an incompatible version. Now, if you are using HPE ProLiant servers and the servers are configured with the below hardware:
- HP ConvergedSystem 900 FlexFabric 20Gb 2-port 630FLB Adapter
- HPE StoreFabric CN1100R 10GBASE-T Dual Port Converged Network Adapter
- HPE Ethernet 10Gb 2-port 530FLR-SFP+ Adapter
- HPE Flex-10 10Gb 2-port 530FLB Adapter
- HP Flex-10 10Gb 2-port 530M Adapter
- HPE Ethernet 10Gb 2-port 530SFP+ Adapter
- HPE Ethernet 10Gb 2-port 530T Adapter
- HPE FlexFabric 10Gb 2-port 533FLR-T Adapter
- HP FlexFabric 10Gb 2-port 534FLB Adapter
- HPE FlexFabric 10Gb 2-port 534FLR-SFP+ Adapter
- HPE FlexFabric 10Gb 2-port 534M Adapter
- HPE StoreFabric CN1100R Dual Port Converged Network Adapter
- HPE FlexFabric 20Gb 2-port 630FLB Adapter
- HPE FlexFabric 20Gb 2-port 630M Adapter
- HPE FlexFabric 10Gb 2-port 536FLB Adapter
Your server is affected by an incompatibility issue between adapter firmware and adapter driver.
The issue occurs AFTER upgrading the driver to version 2.713.30 contained in the Service Pack for ProLiant (SPP) 2017.07.1 and the July HPE Custom Images.
The below ESXi versions are affected by the issue:
- VMware ESXi 5.5.
- VMware ESXi 6.0.
- VMware ESXi 6.5.
Solution
The issue might be happened for any server from any vendor but if you have HPE servers, upgrade HPE BNX2X VMware drivers with older or newer firmware image.
Also if you have plan to add new ESXi server or upgrade current installation, use the below ESXi image or newer:
VMware ESXi 5 fails to install on Intel NUC, “No Network Adapters” error

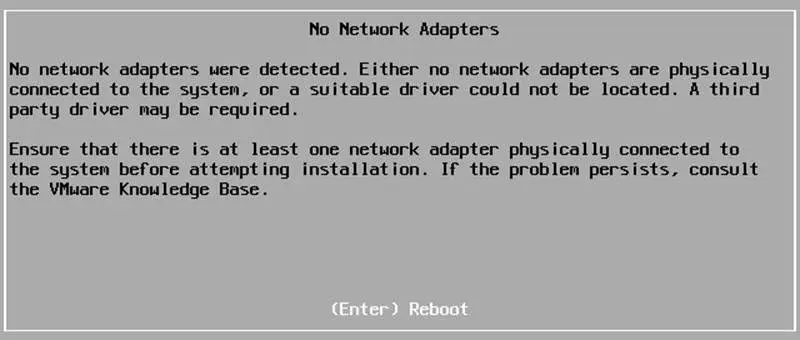

If you use the VMware ESXi 5 ISO image and try to install it on an Intel NUC you’ll receive the following error during the install.
No Network Adapters
No network adapters were detected. Either no network adapters are physically connected to the system, or a suitable driver could not be located. A third party driver my be required.
Ensure that there is at least one network adapter physically connected to the system before attempting installation. If the problem persists, consult the VMware Knowledge Base.
The “No Network Adapters” on the Intel NUC error message during the ESXi install is because VMware removed a number of drivers (non-enterprise drivers) from their ESXi 5.x image and in order to use the Intel NUC as an ESXi host you need to create a customized ESXi image with the NIC drivers added to the image.
This is something I briefly mention in my ESXi Homelab Upgrade post, but still receive a number questions about how add the driver or asking for more details on how exactly to add the Intel NUC (Intel 82579LM) NIC adapter drivers to the ESXi image.
Customized VMware ESXi 5.5 ISO for Intel NUC
There are several ways to add the Intel NUC network adapter driver to an ESXi image. I’m going to show the way I’ve done it for my three Intel NUC hosts that have worked perfectly for me each time.
First we’ll need to download a few things before we start…
- Open ESXi-Customizer.cmd
- Click on Browse to the location of the ESXi ISO image.
- Click on Browse to the location of the Intel net-e1000e-2.3.2.x86_64.vib file.
- Click RUN.
Note: If you’re prompted to replace an existing driver, click on YES.
You should now have a new ISO image called “ESXi-5.x-Custom.iso” with the needed Intel NIC driver added into the image!
Or another method…
Using ESXi-Customizer-PS to create customized ESXi image
Another method to creating a customized ESXi ISO image with Intel NIC drivers is to use the ESXi-Customizer-PS script.
ESXi-Customizer-PS will automatically create an ESXi ISO image, using the latest version and patch level and with a few extra switches can also add a new Intel net-e1000e-3.1.0.2 NIC driver.
You’ll need PowerCLI 5.1 or better and to download ESXi-Customizer-PS.
- Open PowerCLI
- Navigate to where you saved the ESXi-Customizer-PS script. In my case “C:\scripts”
- Type in the following command:
- After just a minute or two the script will be completed with the customized ESXi ISO image saved to the same location of your ESXi-Customizer-PS is located!
Super easy and quick. Plus saves you the time having to manually download the ESXi image yourself and spits out an ESXi image that’s the lastest build and patched version is pretty nice (there are switches to get older versions if you needed).
Adding SATA AHCI drivers for 4th gen Intel NUC’s using ESXi-Customizer-PS
On the Intel NUC 4th generation models an extra SATA AHCI controller driver is required if you plan on using local storage. Adding that driver using the ESXi-Customizer-PS script is incredibly easy by just adding a “,sata-xahci” to the existing command, as shown below.
You’ll need PowerCLI 5.1 or better and to download ESXi-Customizer-PS.
- Open PowerCLI
- Navigate to where you saved the ESXi-Customizer-PS script. In my case “C:\scripts”
- Type in the following command:
- In just minutes the script will download the latest patched version of ESXi 5.5 with the Intel NUC network adapter and SATA ahci drivers.
Create bootable USB drive using customized ESXi image
Once you have the customized ESXi image you’ll likely want to create a bootable USB thumb drive using the new ESXi image. The tool I’ve been using recently, and is very fast, is a tool listed in my Tools page called Rufus.
- Insert your USB thumb drive
- Open Rufus.
- Click on the CD icon next to “Create a bootable disk using” and navigate to your newly created ESXi-5.x-Custom.iso image.
- Then click on Start.
In about 1 or 2 minutes you’ll have an USB thumb drive that’s bootable with your new ESXi image and the Intel NUC NIC driver. Boot from the USB drive and run the ESXi installer. The installer will be loaded into memory which allows you to then install ESXi over top of the ISO image and you’re ready to go!
Regarding USB thumb drives, I’ve been using 8GB SanDisk cruzer blades for some time now with no problems.
Hope this helps. Please post in the comments section if you have any questions!
VMware ESXi — добавление драйверов сетевой карты в образ
Итак вы скачали последнюю версию ESXI с официального сайта, предварительно зарегившись. Регистрация доступна всем и бесплатна, как и сам продукт, если не выходить за рамки ограничений.
Ограничения никак не трогают физическую (железную) часть сервера. То есть вы можете использовать любое оборудование. Бесплатная версия лишь не имеет возможности объединять виртуальные машины в кластеры, а также на 1 виртуальную машину не может выделяться больше чем 8 физических процессоров. Так что для нужд домашних пользователей и небольших компаний бесплатной версии хватает за глаза.
При попытке загрузиться и установить ESXI с образа, очень часто выдается ошибка «No Network Adapters»
Проблема в том, что Esxi не знает большинство стандартных сетевых плат. Чтобы она их увидела. нужно интегрировать драйвера в дистрибутив. В моем случае нужен был драйвер Realtek 8111 под плату Asus M5A97 R2.0. Залез на сайт Асуса, выяснил какой чип стоит на плате. Им оказался Realtek 8111 с буковой на конце.
"No Network Adaptor" During VMware vSphere ESXi Installation
I want to use VMware Workstation 11 to install VMware vSphere ESXi 6 on one VM.
My network card is : “Intel® 82578DM Gigabit Network Connection”.
I am using virtual network adaptor which works on my other windows VMs on my vmware workstation( such as AD, and . ).
I want to install VMware vSphere ESXi 6.0, and I am getting bellow error ( Also I tried version 5.5 and I got the same error):
“No network adapters were detected. Either no network adapters are physically connected to the system, or a suitable driver could not be located. A third party driver may be required.
Ensure that there is at least one network adapter physically connected to the system before attempting installation. If the problem persists, consult the VMware Knowledge Base.”
I think the ISO file that I am using does not have my network card driver, and I have to add my network driver to my ISO file.
I did this: I got this link:
http://www.vkernel.ro/blog/how-to-add-drivers-to-a-vmware-esxi-5-x-iso Opens a new window which it says I need to install ESXi Customizer. Then I need to have .vib or .tgz file.
I went to hp.com -> drivers for OS then I selected Linux( I am not sure did I select correct OS or not ) and downloaded a file sp51782.exe. Still I am not sure is this the correct driver, or not.
WHY CANNOT I INSTALL ESXi ON VMWARE WORKSTATION?
HOW CAN I ADD MY NETWORK CARD DRIVER TO MY ISO FILE?
How can I create .vib or .tgz file?
I really appreciate if you have any idea on this problem. I am really stuck.
